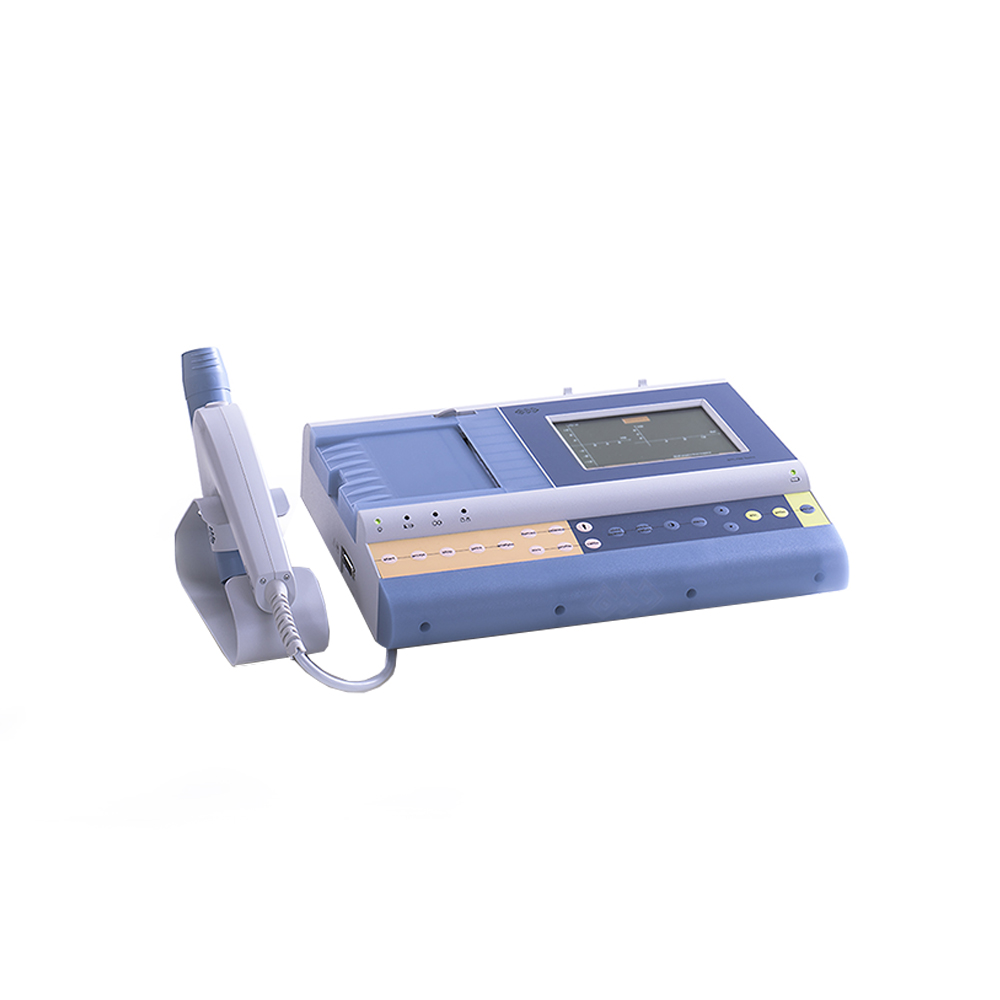

BTL Spirometry Spiro Pro

The BTL-08 Spiro Pro is a modern compact spirometer for performing noninvasive pulmonary function tests and managing patient records comfortably and quickly. The minimum operational costs of the units are ensured by reusable sensors that can be easily disinfected. The measurements are carried out with maximum accuracy in the wide range of airflow and minimum airflow resistance. The units feature built-in sensors for automatic BTPS correction of examination results. The results can be previewed on the large color display prior to printing.

BTL spirometry instantly evaluates every patient based on age, gender, and ethnicity, utilizing FVC, SVC, and MVV tests designed in compliance with ATS/ERS standards. It also offers a wide range of predictive norms. By selecting the desired predictive norm, the system will automatically provide an interpretation from ATS, BTS, Enright, and GOLD.

Features:

• Portable desktop spirometer
• Integrated printer with 112mm paper width
• Colour touch screen (320x240dots) for simple and effective operation
• Real-time display of flow-volume and volume-time graphs
• Up to three curves in the flow-volume graph
• Automatic best test selection with manual correction
• Bronchoprovocative testing
• Paediatric encouragement software
• Automatic interpretation (Enright, BTS, ATS)
• Automatic BTPS correction with automatic measuring of relative humidity, ambient temperature, and barometric pressure
• Configurable output protocol
• Up to 250 patient records can be stored in the unit's memory
• USB or RS-232 connection
• Disinfectable plastic mouthpieces or single-use paper mouthpieces
• Built-in accumulator
• Complies with ATS/ERS 2005 standards, EN 13826 standard, and safety standards EN 60601-1
• The spirometry sensor can be used with selected BTL-08 ECGs (BTL-08 LC Plus, BTL-08 LC, BTL-08 LT Plus, BTL-08 LT, and BTL-08 MT Plus)

Specifications:

• Flow Range (litres/s) 16 l/s (inspire / expire)
  • Accuracy (50 ml/s to 16 l/s) ± 5 % or 50 ml/s (whichever is greater)
• Volume range (litres) 0.025 to 8 litres
  • Accuracy (0.025 to 8 l) ± 3 % or 50 ml (whichever is greater)
• Flow resistance < 79 Pa / l/s
• BTPS correction:
• Temperature sensor + 10°C to + 40°C

  • Accuracy ± 3 % for 25°C
• Barometric Pressure Sensor 700 – 1200 hPa

  • Accuracy ± 2 %
• Relative humidity sensor 0 to 100 % RH

  • Accuracy ± 4 % for 25°C, 30 – 80 % RH
• Mains supply 115 V / 230 V, 50 – 60 Hz, 40 VA
• Accumulator capacity 3 – 4 hours
• Charging time 10 hours (if completely discharged)
• ADC resolution 12 bits
• Sampling frequency 1000 Hz

What is Included:

• Desktop spirometry unit
• Flowmeter with communication cable
• Set of reusable sensors with plastic mouthpieces (4pcs)
• Nose clip
• Thermal paper
• Table holder

Optional Accessories:

• Calibration syringe 3 litres
• Antibacterial filter
• Reusable sensor with plastic mouthpiece
• Plastic mouthpiece
• Paper disposable mouthpiece
• Nose clip
• Disinfection 2 litres
• Thermal paper – 112mm
• Thermal paper – 210mm
• Carry case
• Table holder
• Cart for BTL-08 Spiro Pro System
• Cart for BTL-08 Spiro upgrade for L line ECGs
• Cart for BTL-08 Spiro upgrade for MT Plus ECG

Nappi Code: None

Warranty:
This product comes with a 2 Year warranty from the date of purchase, this warranty only applies to the product and not to any of the accessories.
