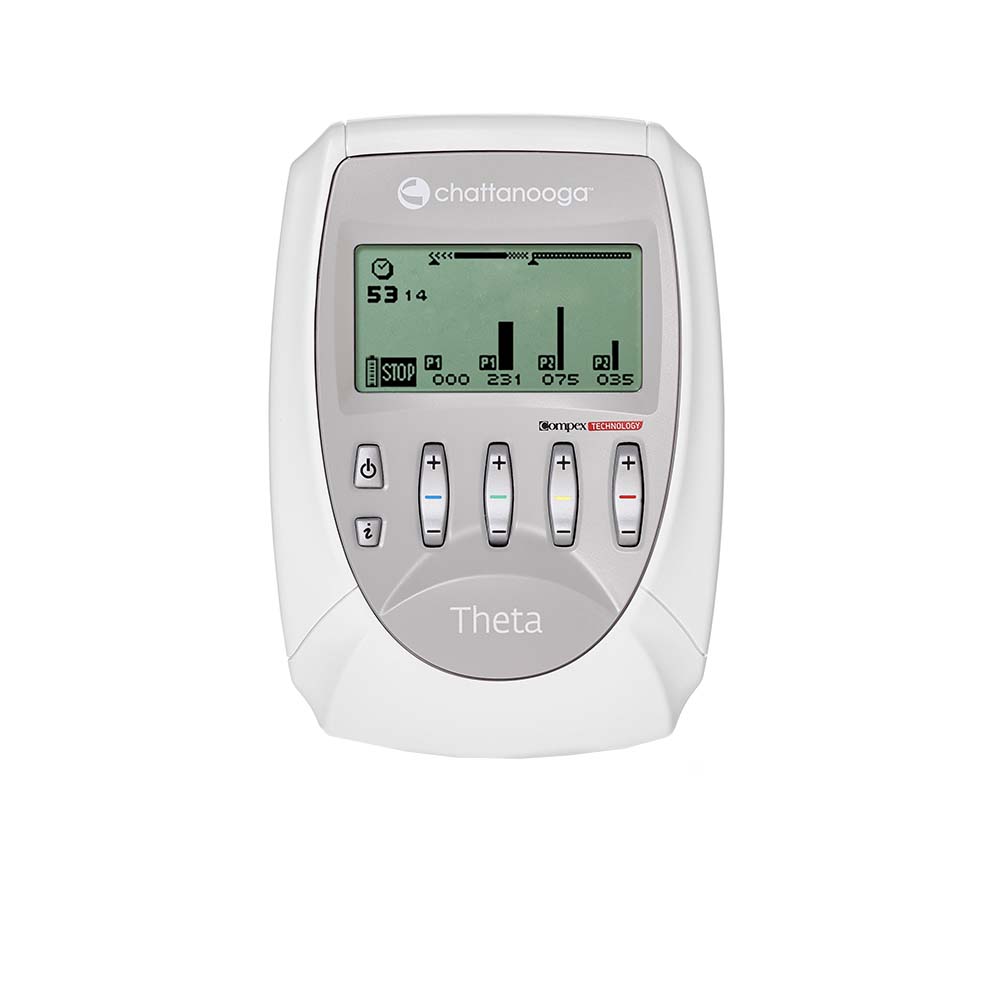

Chattanooga Theta

The Chattanooga Theta has four standard and four full programs, namely Rehabilitation I&II, Pain Relief I&II, Vascular, Neurologic Rehabilitation, and Conditioning I&II. Other than the Rehab Stimulator, the Theta Stimulator has much more possibilities. It also comes with 2 Mi-cables, which makes it suitable for using Muscle Intelligence Technology. The Chattanooga Theta has four channels. It is possible to choose one program for all four of them, but you can also choose to play one program on the first two channels and select another one for channels three and four. This way it is possible to train multiple body parts at once. The device monitors the session time and automatically goes to the next stage when necessary.

The physiotherapy unit is indicated in the treatment of most musculoskeletal injuries and diseases as well as in postoperative treatment after joint surgeries and in the treatment of several pain indications.

Indications:

As an NMES device, indications are for the following conditions:

• Retarding or preventing disuse atrophy
• Maintaining or increasing range of motion
• Re-educating muscles
• Relaxation of muscle spasms
• Increasing local blood circulation

As a TENS device, indications are for the following conditions:

• Symptomatic relief and management of chronic, intractable pain
• Adjunctive treatment for post-surgical and post-trauma acute pain
• Relief of pain associated with arthritis.

As a pulsed current device, indications are for the following conditions:

• Reduction of edema (under negative electrode)
• Reduction of muscle spasm
• Influencing local blood circulation (under negative electrode)
• Retarding or prevention of disuse atrophy
• Facilitation of voluntary motor function
• Maintenance of increase of range of motion

Features:

• Muscle Intelligence Technology: 4 functions on all 4 channels: Mi-Scan, Mi-Tens, Mi-Range, and Mi-Action. 4 Mi-Cables included.
• 2+2 Channels: Choose one program for channels 1 and 2, and then select another program from the 2+2 program list for channels 3 and 4. This allows the treatment of two different body parts, or two patients simultaneously, or combines NMES and TENS as one treatment.
• Trigger Function: Start working phase voluntarily when requested in protocols.
• Automatic Ramp Search for Partial Denervation: To prevent atrophy and limit sclerosis, Physio is the unique device that automatically calculates the ramp for partial denervation when only denervated muscle fibers are required to be stimulated.
• Skip: Manage the session time and move directly to the next phase (recovery) when needed.
• Motor Point Pen: Included in the sets. This very useful tool in combination with the dedicated program helps to ensure the optimal electrode placement.
• Programmability: Creates and personalizes programs in order to customize the patient-specific parameters.
• Detailed Practical Guide: Treatment guideline recommendations and technical parameters for all programs included in the stimulator.
• Autonomy And Speed Recharge: Daily use autonomy and with the charger included in the kit, a full cycle of recharging will take a maximum of 2.5 hours.
• Wave Form: Symmetrical biphasic 100% compensated Monophasic Rectangular/triangular pulses Galvanic/Direct Current

Programs:

• 4 standard + 4 Full program categories:
  • Rehabilitation I&II
  • Pain Relief I&II
  • Vascular
  • Neurologic Rehabilitation
  • Conditioning I&II
• Full program configuration

Specifications:

What is Included:

• 1 x Set of 4-pin cables
• 1 x Transportation pouch
• 1 x Protecting cover
• 1 x Belt clip
• 1 x Motor Point Pen
• 1 x Snap adaptor kit
• 1 x User manual and practical guide on CD/USB
• 2 x Mi cables
• 1 x Battery pack for Rehab, Theta, Physio
• 1 x Fast Charger Rehab - Theta - Physio
• 1 x Dura-Stick® Plus 5 x 10 cm cloth - double mi-snap (2 pack)
• 1 x Dura-Stick® Plus 5 cm (2”) cloth, mi-snap
• 1 x Quick start guide + warning leaflet
• 1 x Electrode placement leaflet
• 1 x Bottle of gel 250 ml

Nappi Code: None

Warranty:

This product comes with a 3-year warranty from the date of purchase, this warranty does not apply to any of the accessories.
