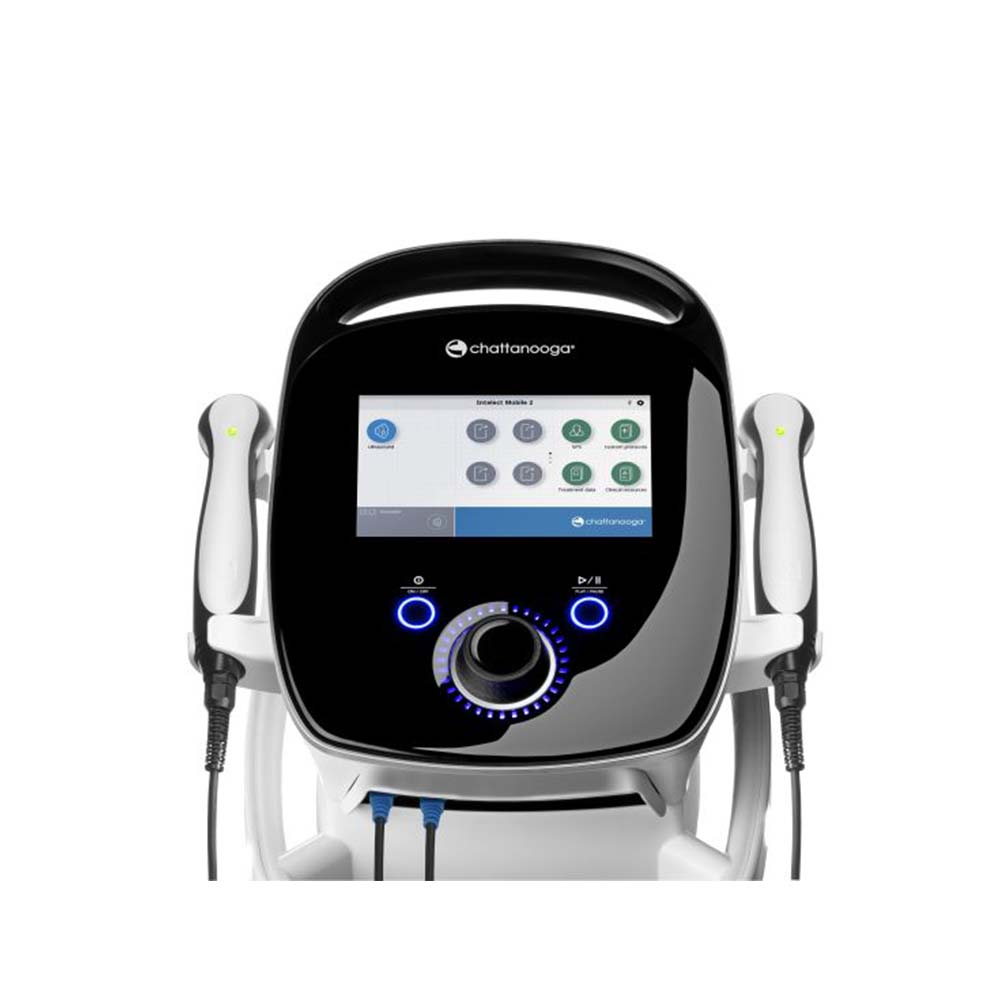

The Chattanooga Intelect Mobile 2 takes ultrasound therapy to the next level. The Intelect Mobile 2 Ultrasound offers dual frequency Ultrasound Therapy at 1 or 3 MHz.
The intuitive user interface, quick access buttons, and preset protocols mean the Chattanooga Intelect Mobile 2 is both simple and effective for therapy delivery. The optional built-in battery makes the Chattanooga Intelect Mobile 2 a truly mobile option. The Intelect Mobile 2 ULTRASOUND is an ultrasound therapy system used with or without an optional Cart. The Intelect Mobile 2 Ultrasound offers dual frequency Ultrasound at 1 or 3 MHz, Pulsed or continuous duty cycles (10%, 20%, 50% & 100%). Supplied with a 5cm2 ultrasound applicator with additional optional heads available. Guidelines for treatment areas are available on the user interface. Coupling detection can be monitored either audibly (set to on as a default) or visually by the LED on the back of the applicator. The treatment time indicator will stop when the head is uncoupled so certainty of the amount of ultrasound treatment delivered during the time period is accurately measured and reproducible.
- This equipment is to be used only under the prescription and supervision of a licensed medical practitioner.
Indications:
- Relief of pain from muscle spasms
- Relief of pain from joint contracture
- Relief of pain associated with ligament sprains, tendinitis, and muscle sprain
Features:
- Full color 17.5cm high-resolution touchscreen
- Upgradable software: future-proof technology
- Import / Export capability (Bluetooth)
- Treatment data storage
- Ergonomic design
- Lightweight and mobile with an ergonomically designed handle
- Optional custom carry case available for safe and secure transport
- Optional cart with storage drawers and large wheels
- Intelligent interface with touch buttons and interactive lights indicating the status of the device or port
- Suggested Protocol Setting (SPS): built-in suggested protocols based on currently available clinical evidence
- Anatomical library with hi-resolution images for patient explanation
- Custom protocols can be stored
Specifications:
General
| Main input voltages | 100-240V AC, 1.0 to 0.42A, 50/60Hz |
| Electrical Class | Class II |
| Mode of operation | Continuous |
| Dimensions / Weight (no battery, excluding cart) | 340 x 355 x 150 mm / 2.8 Kg |
| Conformity | This device complies with the applicable standards EN/IEC 60601-1 and 60601-1-11, CAN/CSA-C22.2 No.601.1, UL Std. No 60601-1 |
| CE 2797 | Classification according to MDD: class IIa device 93/42 60601-1 |
| Legal manufacturer | DJO France SAS - CE 2797 |
Ultrasound
| FREQUENCY | 1MHz; 3 MHz |
| DUTY CYCLES | 10%, 20%, 50%, Continuous |
| PULSE REPETITION RATE | 16,48, or 100 Hz |
| PULSE DURATION | 1-31.25 ms - Max (ON): 31.25 ms - Min (OFF): 5 ms |
Ultrasound applicator
| Ultrasound applicator Frequency | 1cm² | 2cm² | 5cm² |
| 1MHz | 3MHz | 1MHz | 3MHz | 1MHz | 3MHz |
| Effective Radiating Area ERA INTL (cm²) | 1 | 0.9 | 1.5 | 1 | 2.5 | 2.7 |
| Max Output power in Continuous mode | 2W | 1.8W | 3W | 2W | 5W | 5.4W |
| Max Output power in Pulsed mode | 3W | 2.7W(*) | 4.5W | 3W | 7.5W | 8.1W |
| Max Amplitude in Continuous mode | 2W/cm² | 2W/cm² | 2W/cm² | 2W/cm² | 2W/cm² | 2W/cm² |
| Max Amplitude in Pulsed mode | 3W/cm² | 3W/cm² | 3W/cm² | 3W/cm² | 3W/cm² | 3W/cm² |
What is Included:
- Ultrasound gel bottle - 250 ml
- 5 cm² Ultrasound applicator Intelect Mobile 2
- USB Drive Intelect Mobile 2
- Printed Quick Start Guide Mobile 2
- Power cord EU Intelect Mobile 2
Nappi Code: None
Warranty:
This unit comes with a 2-year warranty on the main unit and a 1-year warranty on the applicator, this warranty does not include any of the other accessories.
