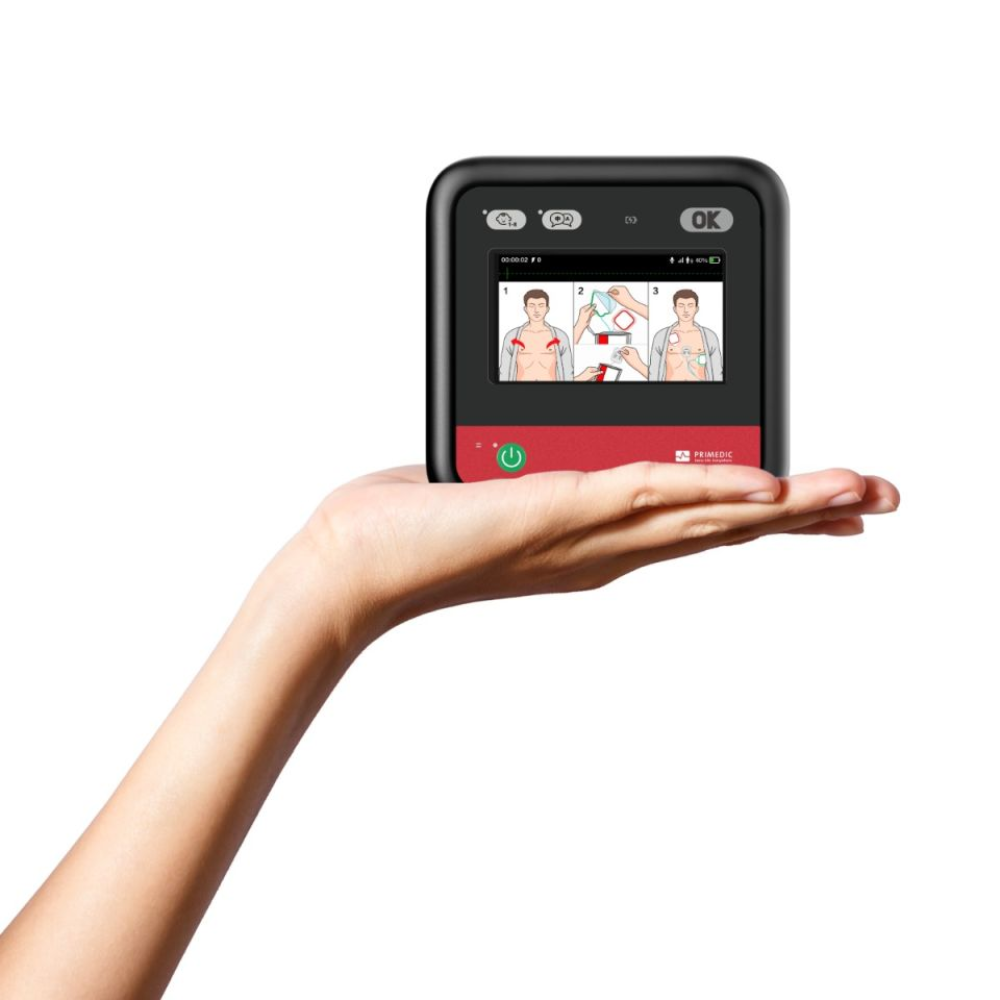

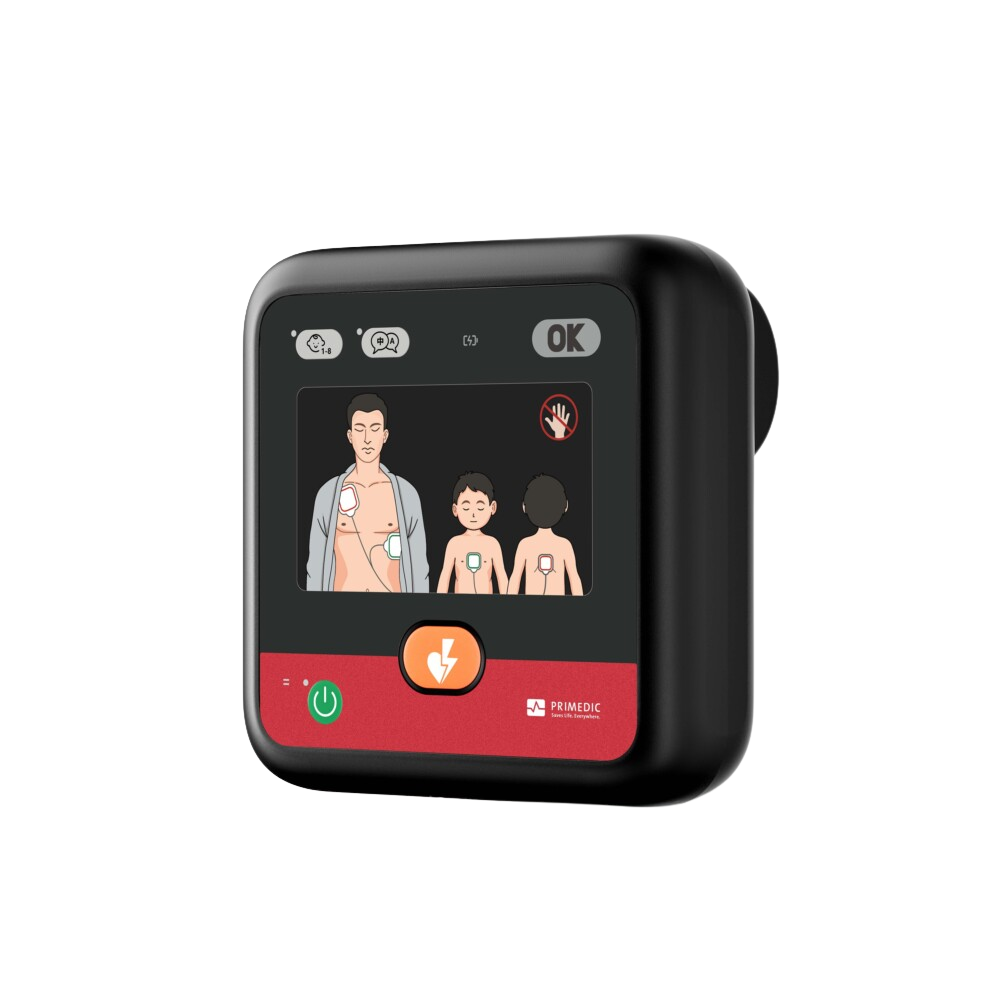

HeartSave myPAD Automated External Defibrillator (AED)

The HeartSave myPAD is an advanced automated external defibrillator engineered to deliver rapid, reliable, and user-guided intervention in cases of sudden cardiac arrest. Designed for versatility, it is suitable for use in home care, public access environments, and clinical settings, ensuring life-saving support is always within reach.

With pre-connected electrodes and an intuitive, self-explanatory interface, the device enables even untrained users to respond quickly and effectively in emergency situations. The system provides clear audio-visual instructions via a 4.3-inch colour display (LCD or touchscreen), including animated guidance, ECG monitoring, and real-time status updates to support first responders throughout the resuscitation process.

The HeartSave myPAD supports both semi-automatic and fully automatic defibrillation modes, providing flexibility for users with varying competencies. Its integrated CPR feedback system utilises advanced sensors and algorithms to guide chest compression rate and depth, enhancing the quality and effectiveness of CPR delivery.

Designed for portability, the device features a compact form factor (approximately 15 × 15 cm) and lightweight construction (1.1 kg), making it suitable for mobile use in sports, travel, and emergency response scenarios. A dedicated child mode allows safe paediatric defibrillation without requiring separate electrodes, while multilingual support ensures accessibility in diverse environments.

The device also integrates modern connectivity through optional IoT (LTE and WiFi), enabling remote monitoring, automated self-testing, and real-time notifications via the myPRIMEDIC Control platform. This ensures continuous operational readiness while reducing the need for manual inspections.

With its durable construction (IP66-rated) and long-life consumables, the HeartSave myPAD represents a reliable, clinically robust AED solution for organisations and individuals seeking to enhance emergency preparedness and improve patient survival outcomes.

Features:

• Semi-automatic and fully automatic defibrillation modes
• Pre-connected electrodes for immediate deployment
• 4.3-inch colour display (LCD or touchscreen) with animated guidance
• Integrated CPR feedback system with real-time compression monitoring
• Child mode for paediatric defibrillation without dedicated electrodes
• IoT connectivity (LTE & WiFi) for remote monitoring and device management
• Automated daily self-tests with status indication
• Multilingual interface (up to 6 languages) for diverse user environments
• Wireless configuration via Bluetooth
• Internal data storage with USB export capability
• Dust- and water-resistant design (IP66 rated)
• Optional rechargeable battery with docking station

Benefits:

• Enables rapid, guideline-compliant response to sudden cardiac arrest
• Supports high-quality CPR through real-time feedback and guidance
• Reduces time-to-treatment with pre-connected electrodes and intuitive workflow
• Enhances patient safety across adult and paediatric populations
• Ensures continuous device readiness via automated self-testing and remote monitoring
• Improves clinical governance with data recording and reporting capabilities
• Minimises maintenance requirements with long-life consumables
• Expands accessibility with multilingual support and simplified user interface

Specifications:

• Device Type: Automated External Defibrillator (AED)
• Operation Modes:
  • Semi-automatic
  • Fully automatic
• Display:
  • 4.3-inch colour screen (10.9 cm) (LCD or touchscreen optional)
• Defibrillation Energy Levels:
  • Adults: 150 J / 170 J / 200 J
  • Children: 50 J
• Dimensions:
  • Approx. 150mm × 150mm × 74 mm
• Weight:
  • Approx. 1.1 kg (≈ 2.43 lbs)
• Battery:
  • Shelf life: up to 5 years
  • Optional rechargeable battery: up to 12 years
• Electrodes Shelf Life:
  • Up to 5 years
• Connectivity:
  • Optional IoT (LTE & WiFi)
  • Bluetooth configuration
• Durability Rating:
  • IP66 (dust and water resistant)
• Languages:
  • Up to 6 selectable languages
• Data Management:
  • Internal storage with USB export
  • Cloud-based remote monitoring (myPRIMEDIC Control)

Nappi Code: None

Warranty:

Main Device Warranty

• The HeartSave myPAD comes with an 8‑year manufacturer’s warranty.
• This covers manufacturing defects and reflects the device’s long‑term, low‑maintenance design.

Battery & Electrode Lifetimes (Not Covered by Warranty)

Consumables are not included in the device warranty and have their own independent lifespans:

• Battery: approx. 5‑year standby life
• Electrode Pads: approx. 5‑year shelf life

Note on battery durability:
The 5‑year standby life is based on ideal conditions (device in standby, no use, only regular self‑tests, temperature around 23°C ±2°C).
Outdoor storage or harsh environments will shorten battery life.
For this reason, we state a clarification that battery lifetime depends on usage and environmental conditions.: “Metrax accepts no liability for the service life of the battery, as many external factors influence battery longevity.”

Warranty Conditions: To keep the warranty valid:

• Repairs must be done by Primedic or an authorised service partner
• Keep the original invoice as proof of purchase
• Follow the operating and maintenance instructions in the user manual
